Chapter 5 Diagnostics

In this Chapter, we will take a look at each of the assumptions in a linear model. We will discuss what tools you will use to assess these assumptions, how to diagnose if the assumptions are met, some common problems often encountered when these assumptions do not hold and finally some remedies to fix these common issues. You will notice that a variety of data sets are used throughout this Chapter. This is to help visualize and test for various assumptions and how to identify when these assumptions are not met.

This Chapter aims to answer the following questions:

  • How to use residuals from a multiple linear regression model to assess the assumptions.
    • Does the mean of the response have a linear pattern in the explanatory variables?
    • Do the residuals have a constant variance?
    • Are the residuals normally distributed?
    • Are the residuals independent?
    • How to identify potential outliers and influential points.
    • How to identify potential multicolliearity.

In multiple linear regression, the assumptions are as follows:

  1. The mean of the Y’s is accurately modeled by a linear function of the X’s.
  2. The random error term, \(\varepsilon\), is assumed to have a normal distribution with a mean of zero.
  3. The random error term, \(\varepsilon\), is assumed to have a constant variance, \(\sigma^{2}\).
  4. The errors are independent.
  5. No perfect collinearity.

Before exploring the assumptions of a linear model, it is always good to visually take a look at your data (if it is not too large). The pairs command in R allows you to look at all scatterplots between the variables in a data set.

To illustrate this, we will use the Salaries data set in the package carData in R that has 397 observations of salaries for professors. The explanatory variables include:

  • rank: a factor with levels AssocProf, AsstProf, Prof
  • discipline: a factor with levels A (“theoretical” departments) or B (“applied” departments)
  • yrs.since.phd: years since PhD
  • yrs.service: years of service
  • sex: a factor with levels Female and Male
  • salary: nine-month salary, in dollars

Using this data set, let’s take a look at the relationship between each pair of variables in Figure 5.1.

library(carData)
library(ggplot2)
library(gridExtra)
## Warning: package 'gridExtra' was built under R version 4.3.3
library(grid)
library(lattice)
library(nortest)
library(MASS)
library(TSA)
library(lmtest)
library(car)
pairs(Salaries)
Matrix of Scatter Plots for the Salaries Data

Figure 5.1: Matrix of Scatter Plots for the Salaries Data

If there are not too many variables, this plot is a nice way to see all the relationships in the data set. The variables are listed along the diagonal and each off diagonal plot is a scatterplot of the variables represented by that row and column. For example, the first row of plots have rank on the y-axis. The first column of plots have rank along the x-axis.

5.0.1 Python Code

import statsmodels.formula.api as smf
## C:\Users\sjsimmo2\AppData\Local\R\win-library\4.3\reticulate\python\rpytools\loader.py:117: UserWarning: Pandas requires version '2.8.4' or newer of 'numexpr' (version '2.8.3' currently installed).
##   return _find_and_load(name, import_)
## C:\Users\sjsimmo2\AppData\Local\R\win-library\4.3\reticulate\python\rpytools\loader.py:117: UserWarning: Pandas requires version '1.3.6' or newer of 'bottleneck' (version '1.3.5' currently installed).
##   return _find_and_load(name, import_)
import statsmodels.api as sm
import statsmodels.stats as ss
import matplotlib.pyplot as plt
import scipy as sp
import pandas as pd
import numpy as np
import seaborn as sns

Salaries = r.Salaries
train=r.train

Salaries = Salaries.rename(columns={"yrs.since.phd": "yrs_since_phd", "yrs.service": "yrs_service"})

ax = sns.pairplot(data = Salaries[['rank', 'discipline', 'yrs_since_phd', 'yrs_service', 'salary']])
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
plt.show()

5.1 Examining Residuals

As you can see from the above list of assumptions that most of them involve the error term which is estimated by the residuals. We will be using the residuals for many of these diagnostics. One of the most useful plot is referred as the residual plot. This plot will have the residuals along the y-axis and either the predicted values or individual x-values along the x-axis. The following figure is an example using the residuals from a linear model predicting salary using all of the explanatory variables.

lm.model=lm(salary~.,data=Salaries)

ggplot(lm.model,aes(x=fitted(lm.model),y=resid(lm.model)))+geom_point(color="blue")+labs(x="Predicted Values",y="Residuals")
Residuals vs. Predicted Values for Salary Model

Figure 5.2: Residuals vs. Predicted Values for Salary Model

5.1.1 Python Code

model_mlr = smf.ols("salary ~ C(rank) + C(discipline) + yrs_since_phd + yrs_service + C(sex)", data = Salaries).fit()
model_mlr.summary()
OLS Regression Results
Dep. Variable: salary R-squared: 0.455
Model: OLS Adj. R-squared: 0.446
Method: Least Squares F-statistic: 54.20
Date: Sun, 23 Jun 2024 Prob (F-statistic): 1.79e-48
Time: 14:05:05 Log-Likelihood: -4538.9
No. Observations: 397 AIC: 9092.
Df Residuals: 390 BIC: 9120.
Df Model: 6
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 6.596e+04 4588.601 14.374 0.000 5.69e+04 7.5e+04
C(rank)[T.AssocProf] 1.291e+04 4145.278 3.114 0.002 4757.700 2.11e+04
C(rank)[T.Prof] 4.507e+04 4237.523 10.635 0.000 3.67e+04 5.34e+04
C(discipline)[T.B] 1.442e+04 2342.875 6.154 0.000 9811.380 1.9e+04
C(sex)[T.Male] 4783.4928 3858.668 1.240 0.216 -2802.901 1.24e+04
yrs_since_phd 535.0583 240.994 2.220 0.027 61.248 1008.869
yrs_service -489.5157 211.938 -2.310 0.021 -906.199 -72.833
Omnibus: 46.385 Durbin-Watson: 1.919
Prob(Omnibus): 0.000 Jarque-Bera (JB): 82.047
Skew: 0.699 Prob(JB): 1.53e-18
Kurtosis: 4.733 Cond. No. 179.


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
Salaries['pred_mlr'] = model_mlr.predict()
Salaries['resid_mlr'] = model_mlr.resid

Salaries[['salary', 'pred_mlr', 'resid_mlr']].head(n = 10)
##    salary       pred_mlr     resid_mlr
## 0  139750  131577.173919   8172.826081
## 1  173200  133091.263631  40108.736369
## 2   79750   85828.036746  -6078.036746
## 3  115000  135208.859230 -20208.859230
## 4  141500  131554.536390   9945.463610
## 5   97000   98337.194064  -1337.194064
## 6  175000  135015.236444  39984.763556
## 7  147765  132271.764939  15493.235061
## 8  119250  131668.259052 -12418.259052
## 9  129000  126258.622800   2741.377200
ax = sns.relplot(data = Salaries, y = "resid_mlr", x = "pred_mlr")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Predicted Salary')

plt.show()

5.2 Misspecified Model

One of the assumptions assumes that the expected value of the response is accurately modeled by a linear function of the explanatory variables. If this is true, then we would expect our residual plots to be random scatter (in other words, all of the “signal” was correctly captured in the model and there is just noise left over).

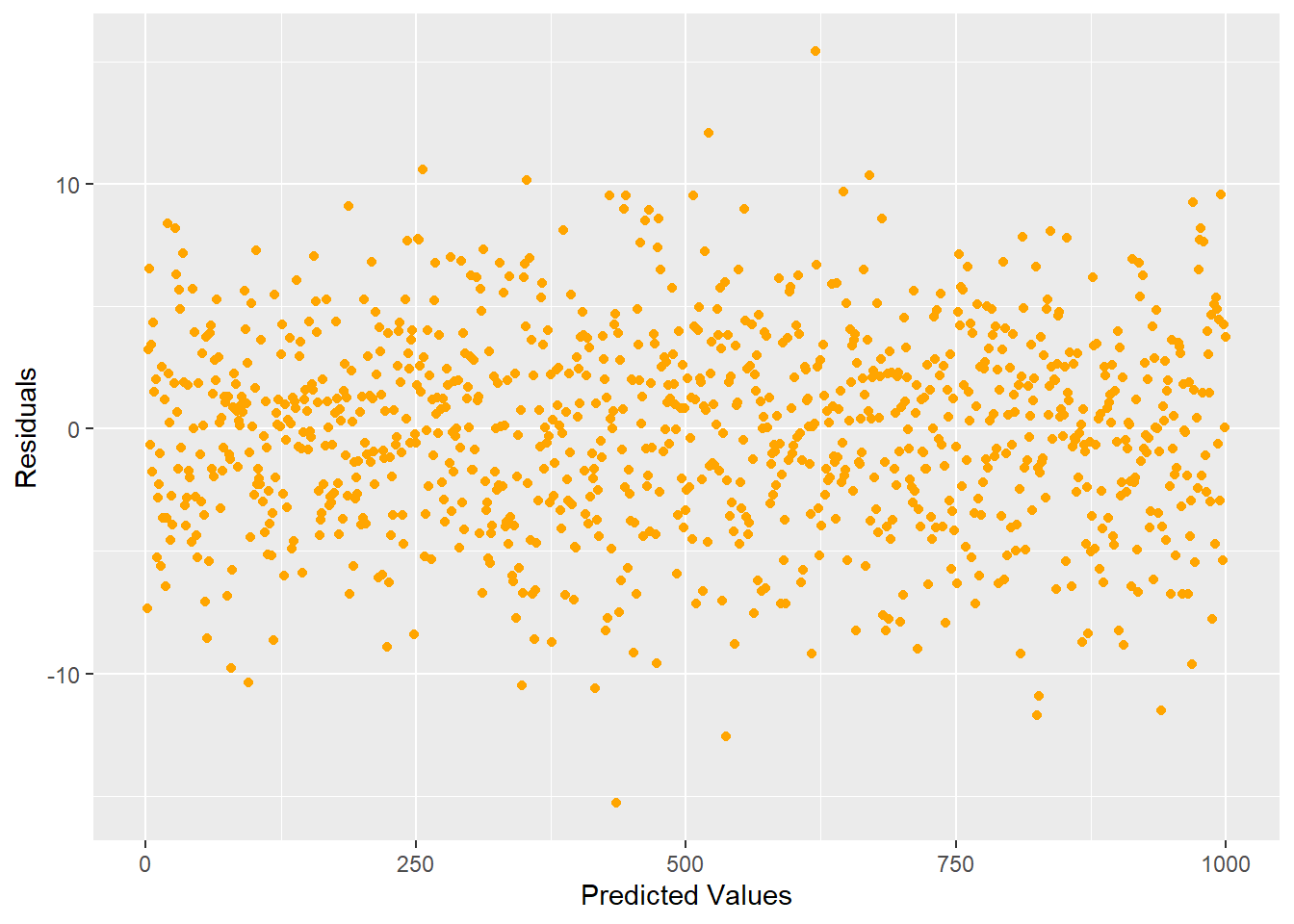

Ideal residual plot showing residual values randomly distributed with equal variance

Figure 5.3: Ideal residual plot showing residual values randomly distributed with equal variance

Looking at the plot in Figure 5.3, we see that there is no pattern. If you did see some type of pattern in this residual plot, it would indicate that you are missing something and need to do some more modeling. For example, a quadratic shape or curvilinear pattern to the residuals would indicate that one of our input variables has a nonlinear relationship to the response and transformations should be made to that input accordingly. For example, a residual scatter plot like Figure 5.4 would prompt us to consider a quadratic term.

Residual plot indicating that a quadratic term is required

Figure 5.4: Residual plot indicating that a quadratic term is required

If your model has more than one x, it is easier to see if an individual input variable has a quadratic relationship with the response when looking at plots like Figure 5.4 where the input variable is on the x-axis.

Example

Let’s take a look at an example of where a quadratic linear regression is needed. This example is studying the effect of a chemical additive on paper strength. The response variable is the amount of force required to break the paper (strength) and the explanatory variable is the amount of chemical additive (amount).

 amount=c(1,1,1,2,2,2,2,2,3,3,3,3,4,4,4,4,4,5,5,5,5,5)
 strength=c(2.4,2.6,2.7,2.5,2.6,2.6,2.7,2.8,2.8,2.8,3.0,3.0,3.0,2.9,2.9,3.0,3.1,2.9,2.9,3.0,2.9,2.8)
 lm.quad=lm(strength~amount)
 summary(lm.quad)
##
## Call:
## lm(formula = strength ~ amount)
##
## Residuals:
##       Min        1Q    Median        3Q       Max
## -0.199780 -0.091850  0.004185  0.101707  0.206167
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  2.50176    0.06920  36.154  < 2e-16 ***
## amount       0.09802    0.01998   4.907 8.52e-05 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1283 on 20 degrees of freedom
## Multiple R-squared:  0.5462, Adjusted R-squared:  0.5236
## F-statistic: 24.08 on 1 and 20 DF,  p-value: 8.518e-05
 ggplot(lm.quad,aes(x=amount,y=resid(lm.quad)))+geom_point(color="blue",size=3)+labs( x="Amount", y="Residuals")
Residual Plot Showing a Quadratic Relationship

Figure 5.5: Residual Plot Showing a Quadratic Relationship

The above fitted model is \[\hat{Y}_{i} = 2.5 + 0.1x_{i}.\] However, after looking at the residual plot and noticing the quadratic shape, we realize that we need a higher order term for amount.

amount.c<-scale(amount,scale=F)

lm.quad=lm(strength~amount.c + I(amount.c^2))

summary(lm.quad)
##
## Call:
## lm(formula = strength ~ amount.c + I(amount.c^2))
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.22276 -0.06562 -0.02763  0.07602  0.19466
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)    2.88358    0.03783  76.228  < 2e-16 ***
## amount.c       0.09202    0.01807   5.091 6.49e-05 ***
## I(amount.c^2) -0.03728    0.01535  -2.428   0.0253 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.115 on 19 degrees of freedom
## Multiple R-squared:  0.6537, Adjusted R-squared:  0.6173
## F-statistic: 17.93 on 2 and 19 DF,  p-value: 4.212e-05
ggplot(lm.quad,aes(x=amount,y=resid(lm.quad)))+geom_point(color="orange",size=2)+labs(title="Residual plot", x="Amount", y="Residuals")
New Residual Plot after Fitting a Quadratic Term

Figure 5.6: New Residual Plot after Fitting a Quadratic Term

The second order polynomial model is \[\hat{Y}_{i} = 2.88 + 0.09(x_{i}-\bar{x})-0.04(x_{i}-\bar{x})^{2}\] and the residuals from this model are shown in Figure 5.6. If you think there might still be some pattern in Figure 5.6, you could try a third degree polynomial:

lm.3=lm(strength~amount.c+I(amount.c^2)+I(amount.c^3))

summary(lm.3)
##
## Call:
## lm(formula = strength ~ amount.c + I(amount.c^2) + I(amount.c^3))
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.15941 -0.06360  0.00272  0.08579  0.14142
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)    2.89841    0.03495  82.934  < 2e-16 ***
## amount.c       0.18335    0.04372   4.194 0.000546 ***
## I(amount.c^2) -0.04979    0.01500  -3.320 0.003805 **
## I(amount.c^3) -0.02862    0.01270  -2.254 0.036927 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1044 on 18 degrees of freedom
## Multiple R-squared:  0.7299, Adjusted R-squared:  0.6849
## F-statistic: 16.22 on 3 and 18 DF,  p-value: 2.344e-05
ggplot(lm.3,aes(x=amount,y=resid(lm.3)))+geom_point(color="orange",size=2)+labs(x="Amount", y="Residuals")
New Residual Plot after Fitting a Cubic Term

Figure 5.7: New Residual Plot after Fitting a Cubic Term

The new regression equation is now \[\hat{Y}_{i} = 2.9 + 0.18(x_{i}-\bar{x}) - 0.05(x_{i}-\bar{x})^{2}-0.03(x_{i}-\bar{x})^{3}.\]

In wrapping up the misspecified model, if a linear model does not look appropriate (there is a pattern in the residual plot), then you can try the following remedies:

  1. Fit a polynomial or more complex regression model.
  2. Transform the dependent and/or independent variables to obtain linearity.
  3. Fit a nonlinear regression model, if appropriate (will need to decide the shape of a nonlinear model).
  4. Fit a nonparametric regression model (for example splines or a LOESS regression).

5.2.1 Python Code

chemical = pd.DataFrame({'amount': [1,1,1,2,2,2,2,2,3,3,3,3,4,4,4,4,4,5,5,5,5,5],
                   'strength': [2.4,2.6,2.7,2.5,2.6,2.6,2.7,2.8,2.8,2.8,3.0,3.0,3.0,2.9,2.9,3.0,3.1,2.9,2.9,3.0,2.9,2.8]})

model_quad = smf.ols("strength ~ amount", data = chemical).fit()
model_quad.summary()
OLS Regression Results
Dep. Variable: strength R-squared: 0.546
Model: OLS Adj. R-squared: 0.524
Method: Least Squares F-statistic: 24.08
Date: Sun, 23 Jun 2024 Prob (F-statistic): 8.52e-05
Time: 14:05:07 Log-Likelihood: 15.001
No. Observations: 22 AIC: -26.00
Df Residuals: 20 BIC: -23.82
Df Model: 1
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 2.5018 0.069 36.154 0.000 2.357 2.646
amount 0.0980 0.020 4.907 0.000 0.056 0.140
Omnibus: 0.729 Durbin-Watson: 1.144
Prob(Omnibus): 0.694 Jarque-Bera (JB): 0.681
Skew: 0.082 Prob(JB): 0.712
Kurtosis: 2.154 Cond. No. 9.38


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
chemical['pred_mlr'] = model_quad.predict()
chemical['resid_mlr'] = model_quad.resid

ax = sns.relplot(data = chemical, y = "resid_mlr", x = "amount")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Amount')

plt.show()


chemical['amount_c'] = chemical['amount'] - np.mean(chemical['amount'])
model_quad2 = smf.ols("strength ~ amount_c + I(amount_c**2)", data = chemical).fit()
model_quad2.summary()
OLS Regression Results
Dep. Variable: strength R-squared: 0.654
Model: OLS Adj. R-squared: 0.617
Method: Least Squares F-statistic: 17.93
Date: Sun, 23 Jun 2024 Prob (F-statistic): 4.21e-05
Time: 14:05:09 Log-Likelihood: 17.974
No. Observations: 22 AIC: -29.95
Df Residuals: 19 BIC: -26.68
Df Model: 2
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 2.8836 0.038 76.228 0.000 2.804 2.963
amount_c 0.0920 0.018 5.091 0.000 0.054 0.130
I(amount_c ** 2) -0.0373 0.015 -2.428 0.025 -0.069 -0.005
Omnibus: 0.468 Durbin-Watson: 1.658
Prob(Omnibus): 0.791 Jarque-Bera (JB): 0.558
Skew: 0.013 Prob(JB): 0.757
Kurtosis: 2.221 Cond. No. 4.21


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
chemical['pred_mlr2'] = model_quad2.predict()
chemical['resid_mlr2'] = model_quad2.resid

ax = sns.relplot(data = chemical, y = "resid_mlr2", x = "amount")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Amount')

plt.show()

model_quad3 = smf.ols("strength ~ amount_c + I(amount_c**2) + I(amount_c**3)", data = chemical).fit()
model_quad3.summary()
OLS Regression Results
Dep. Variable: strength R-squared: 0.730
Model: OLS Adj. R-squared: 0.685
Method: Least Squares F-statistic: 16.22
Date: Sun, 23 Jun 2024 Prob (F-statistic): 2.34e-05
Time: 14:05:09 Log-Likelihood: 20.708
No. Observations: 22 AIC: -33.42
Df Residuals: 18 BIC: -29.05
Df Model: 3
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 2.8984 0.035 82.934 0.000 2.825 2.972
amount_c 0.1834 0.044 4.194 0.001 0.091 0.275
I(amount_c ** 2) -0.0498 0.015 -3.320 0.004 -0.081 -0.018
I(amount_c ** 3) -0.0286 0.013 -2.254 0.037 -0.055 -0.002
Omnibus: 2.244 Durbin-Watson: 1.733
Prob(Omnibus): 0.326 Jarque-Bera (JB): 1.118
Skew: 0.064 Prob(JB): 0.572
Kurtosis: 1.903 Cond. No. 10.6


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
chemical['pred_mlr3'] = model_quad3.predict()
chemical['resid_mlr3'] = model_quad3.resid

ax = sns.relplot(data = chemical, y = "resid_mlr3", x = "amount")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Amount')

plt.show()

5.3 Constant Variance

Another assumption for linear regression is that the variance is constant about the line. Looking at Figure 5.8, you see that the variation about the line is constant across the line (notice the bands that have been drawn around the line).

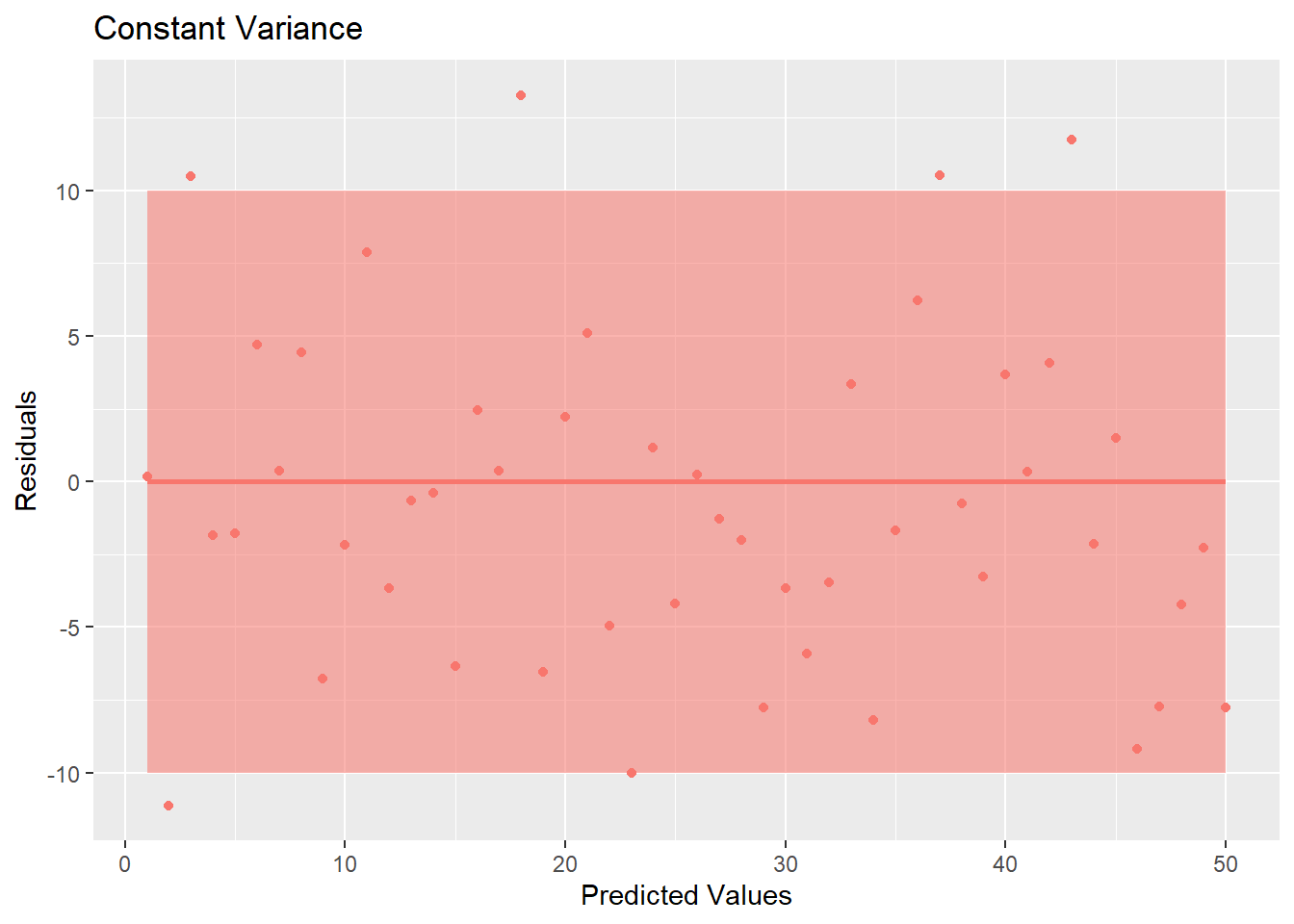

Residual Plot Showing Non-Constant Variance

Figure 5.8: Residual Plot Showing Non-Constant Variance

However, an example of where this is not true is shown in Figure 5.9.

Residual Plot Showing Non-Constant Variance

Figure 5.9: Residual Plot Showing Non-Constant Variance

Notice how the variability increases as the predicted values increase (the bands get wider). This is referred to as heteroskedasticity in the variance, which violates the constant variance assumption (homoskedasticity). The homoskedastic assumption is about the regression line, so it is best to look at the plot of residuals versus predicted values (not individual x-values). There are a few tests for this assumption, but they are limited in what they are able to test. Best way to evaluate this assumption is by visualizing the residual plot and make a judgement call. If the variance appears to be heteroskadastic, any inferences under the traditional assumptions will be incorrect. In other words, hypothesis tests and confidence intervals based on the t, F, and \(\chi^{2}\) distributions will not be valid.

Example

The following fictious salary data set is from the online textbook Applied Statistics with R. The explanatory variable is number of years employment and the response variable is annual salary.

years=c(1,1,1,2,2,2,2,3,3,3,3,4,4,4,4,5,5,5,5,6,6,6,6,7,7,7,7,8,8,8,8,9,9,9,9,9,10,10,10,10,11,11,11,11,12,12,12,12,13,13,13,13,14,14,14,14,15,15,15,15,16,16,16,16,17,17,17,17,17,18,18,18,18,19,19,19,19,20,20,20,20,21,21,21,21,22,22,22,22,23,23,23,23,24,24,24,24,25,25,25)

salary=c(41504,32619,44322,40038,46147,38447,38163,42104,25597,39599,55698,47220,65929,55794,45959,52460,60308,61458,56951,56174,59363,57642,69792,59321,66379,64282,48901,100711,59324,54752,73619,65382,58823,65717,92816,72550,71365,88888,62969,45298,111292,91491,106345,99009,73981,72547,74991,139249,119948,128962,98112,97159,125246,89694,73333,108710,97567,90359,119806,101343,147406,153020,143200,97327,184807,146263,127925,159785,174822,177610,210984,160044,137044,182996,184183,168666,121350,193627,142611,170131,134140,129446,201469,202104,220556,166419,149044,247017,247730,252917,235517,241276,197229,175879,253682,262578,207715,221179,212028,312549)

lm.var=lm(salary~years)

ggplot(lm.var,aes(x=fitted(lm.var),y=resid(lm.var)))+geom_point(color="blue")+labs(title="Residual Plot", x="Predicted Values",y="Residuals")
Residuals With Heteroskedasticity

Figure 5.10: Residuals With Heteroskedasticity

As you can see from the residual plot in Figure 5.10, the graph exhibits a fan-shape and the variance is increasing as the predicted values get larger. We can apply a logarithmic transform to try to stabilize the variance, the result of which is shown in Figure 5.11.

Residual Plot Showing Stabilized Variance after Log Transform

Figure 5.11: Residual Plot Showing Stabilized Variance after Log Transform

The log transform stabilized the variance and produces a better residual plot.

Another way to handle heteroscedacity is to perform a Weighted Least Squares. The hardest part of WLS is how to identify the weights. For example:

x<-c(rep(2:10,each=5))
set.seed(26785)
error<-rnorm(length(x),0,x)
y<-50 + 1.2*x + error
model1<-lm(y~x)
ggplot(model1, aes(x = .fitted, y = .resid)) +
  geom_point()

summary(model1)
##
## Call:
## lm(formula = y ~ x)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -20.3750  -3.4632  -0.3275   5.4592  14.8181
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  50.2878     2.8033  17.939   <2e-16 ***
## x             0.9811     0.4292   2.286   0.0272 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 7.433 on 43 degrees of freedom
## Multiple R-squared:  0.1084, Adjusted R-squared:  0.08763
## F-statistic: 5.226 on 1 and 43 DF,  p-value: 0.02724
# weights using standard deviations (not usually known)
weights1<-1/x^2
model2<-lm(y~x,weights = weights1)
summary(model2)
##
## Call:
## lm(formula = y ~ x, weights = weights1)
##
## Weighted Residuals:
##      Min       1Q   Median       3Q      Max
## -2.57601 -0.79232 -0.06276  1.03159  1.83044
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  49.9844     1.4734  33.926  < 2e-16 ***
## x             1.0408     0.3641   2.858  0.00654 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.216 on 43 degrees of freedom
## Multiple R-squared:  0.1597, Adjusted R-squared:  0.1401
## F-statistic:  8.17 on 1 and 43 DF,  p-value: 0.006542
ggplot(model2, aes(x = .fitted, y = .resid)) +
  geom_point()

# weights using fitted values
weights2<-1/model1$fitted.values^2
model3<-lm(y~x,weights=weights2)
summary(model3)
##
## Call:
## lm(formula = y ~ x, weights = weights2)
##
## Weighted Residuals:
##      Min       1Q   Median       3Q      Max
## -0.34459 -0.06512 -0.00559  0.10066  0.25493
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)  50.2946     2.6490  18.986   <2e-16 ***
## x             0.9799     0.4194   2.337   0.0242 *
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1295 on 43 degrees of freedom
## Multiple R-squared:  0.1127, Adjusted R-squared:  0.09204
## F-statistic:  5.46 on 1 and 43 DF,  p-value: 0.02418

Notice that the estimates do NOT change from OLS to WLS!! Just the standard errors. Another technique is to use robust standard errors. This can be done within the estimatr package:

library(estimatr)
## Warning: package 'estimatr' was built under R version 4.3.3
model3<-lm_robust(y~x,se_type = "HC1")
summary(model3)
##
## Call:
## lm_robust(formula = y ~ x, se_type = "HC1")
##
## Standard error type:  HC1
##
## Coefficients:
##             Estimate Std. Error t value  Pr(>|t|) CI Lower CI Upper DF
## (Intercept)  50.2878     1.8577  27.070 1.216e-28  46.5413   54.034 43
## x             0.9811     0.3802   2.581 1.336e-02   0.2144    1.748 43
##
## Multiple R-squared:  0.1084 ,    Adjusted R-squared:  0.08763
## F-statistic: 6.659 on 1 and 43 DF,  p-value: 0.01336
model4<-lm_robust(y~x)
summary(model4)
##
## Call:
## lm_robust(formula = y ~ x)
##
## Standard error type:  HC2
##
## Coefficients:
##             Estimate Std. Error t value  Pr(>|t|) CI Lower CI Upper DF
## (Intercept)  50.2878     1.8672  26.932 1.496e-28  46.5222   54.053 43
## x             0.9811     0.3825   2.565 1.390e-02   0.2096    1.753 43
##
## Multiple R-squared:  0.1084 ,    Adjusted R-squared:  0.08763
## F-statistic: 6.578 on 1 and 43 DF,  p-value: 0.0139

In conclusion, if the assumption of Homoskadicity of variance is violated, you can try:

  1. Transform data.
  2. Use Weighted Least Squares (WLS) or iteratively reweighted least squares (IRLS).
  3. Use robust standard errors.
  4. Use a different distribution (for example if the response is count data, use Poisson distribution).

5.3.1 Python Code

experience = pd.DataFrame({'salary': [41504,32619,44322,40038,46147,38447,38163,42104,25597,39599,55698,47220,65929,55794,45959,52460,60308,61458,56951,56174,59363,57642,69792,59321,66379,64282,48901,100711,59324,54752,73619,65382,58823,65717,92816,72550,71365,88888,62969,45298,111292,91491,106345,99009,73981,72547,74991,139249,119948,128962,98112,97159,125246,89694,73333,108710,97567,90359,119806,101343,147406,153020,143200,97327,184807,146263,127925,159785,174822,177610,210984,160044,137044,182996,184183,168666,121350,193627,142611,170131,134140,129446,201469,202104,220556,166419,149044,247017,247730,252917,235517,241276,197229,175879,253682,262578,207715,221179,212028,312549],
                   'years': [1,1,1,2,2,2,2,3,3,3,3,4,4,4,4,5,5,5,5,6,6,6,6,7,7,7,7,8,8,8,8,9,9,9,9,9,10,10,10,10,11,11,11,11,12,12,12,12,13,13,13,13,14,14,14,14,15,15,15,15,16,16,16,16,17,17,17,17,17,18,18,18,18,19,19,19,19,20,20,20,20,21,21,21,21,22,22,22,22,23,23,23,23,24,24,24,24,25,25,25]})

model_var = smf.ols("salary ~ years", data = experience).fit()
model_var.summary()
OLS Regression Results
Dep. Variable: salary R-squared: 0.834
Model: OLS Adj. R-squared: 0.832
Method: Least Squares F-statistic: 492.8
Date: Sun, 23 Jun 2024 Prob (F-statistic): 5.16e-40
Time: 14:05:11 Log-Likelihood: -1162.5
No. Observations: 100 AIC: 2329.
Df Residuals: 98 BIC: 2334.
Df Model: 1
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 5302.0807 5749.963 0.922 0.359 -6108.534 1.67e+04
years 8636.6123 389.044 22.200 0.000 7864.567 9408.658
Omnibus: 1.672 Durbin-Watson: 1.331
Prob(Omnibus): 0.433 Jarque-Bera (JB): 1.129
Skew: 0.212 Prob(JB): 0.569
Kurtosis: 3.303 Cond. No. 31.2


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
experience['pred_mlr'] = model_var.predict()
experience['resid_mlr'] = model_var.resid

ax = sns.relplot(data = experience, y = "resid_mlr", x = "years")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Years')

plt.show()

experience['log_salary'] = np.log(experience['salary'])

model_var2 = smf.ols("log_salary ~ years", data = experience).fit()
model_var2.summary()
OLS Regression Results
Dep. Variable: log_salary R-squared: 0.891
Model: OLS Adj. R-squared: 0.890
Method: Least Squares F-statistic: 805.2
Date: Sun, 23 Jun 2024 Prob (F-statistic): 4.63e-49
Time: 14:05:12 Log-Likelihood: 22.359
No. Observations: 100 AIC: -40.72
Df Residuals: 98 BIC: -35.51
Df Model: 1
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 10.4838 0.041 255.179 0.000 10.402 10.565
years 0.0789 0.003 28.376 0.000 0.073 0.084
Omnibus: 3.204 Durbin-Watson: 1.818
Prob(Omnibus): 0.202 Jarque-Bera (JB): 2.855
Skew: -0.413 Prob(JB): 0.240
Kurtosis: 3.049 Cond. No. 31.2


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
experience['pred_mlr2'] = model_var2.predict()
experience['resid_mlr2'] = model_var2.resid

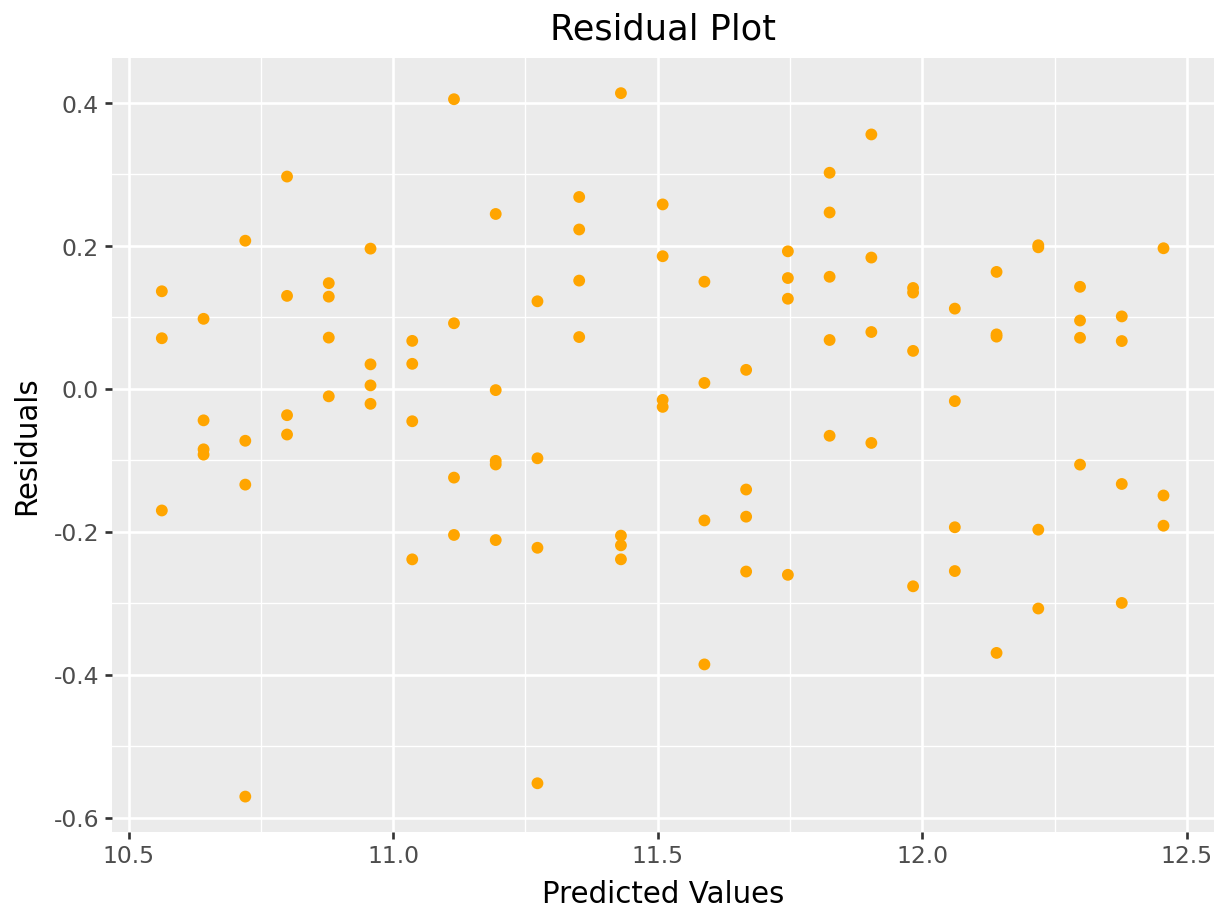

ax = sns.relplot(data = experience, y = "resid_mlr2", x = "years")
## C:\PROGRA~3\ANACON~1\lib\site-packages\seaborn\axisgrid.py:123: UserWarning: The figure layout has changed to tight
##   self._figure.tight_layout(*args, **kwargs)
ax.set(ylabel = 'Residuals',
       xlabel = 'Years')

plt.show()

x=r.x
y=r.y
weights1=r.weights1
weights2 = r.weights2

x = sm.add_constant(x)
model1 = sm.WLS(y, x, weights=weights1)
results1 = model1.fit()
model2 = sm.WLS(y, x, weights=weights2)
results2 = model2.fit()

# Print regression results
print(results1.summary())
##                             WLS Regression Results
## ==============================================================================
## Dep. Variable:                      y   R-squared:                       0.160
## Model:                            WLS   Adj. R-squared:                  0.140
## Method:                 Least Squares   F-statistic:                     8.170
## Date:                Sun, 23 Jun 2024   Prob (F-statistic):            0.00654
## Time:                        14:05:13   Log-Likelihood:                -147.17
## No. Observations:                  45   AIC:                             298.3
## Df Residuals:                      43   BIC:                             301.9
## Df Model:                           1
## Covariance Type:            nonrobust
## ==============================================================================
##                  coef    std err          t      P>|t|      [0.025      0.975]
## ------------------------------------------------------------------------------
## const         49.9844      1.473     33.926      0.000      47.013      52.956
## x1             1.0408      0.364      2.858      0.007       0.306       1.775
## ==============================================================================
## Omnibus:                        2.713   Durbin-Watson:                   2.556
## Prob(Omnibus):                  0.258   Jarque-Bera (JB):                2.001
## Skew:                          -0.344   Prob(JB):                        0.368
## Kurtosis:                       2.230   Cond. No.                         8.50
## ==============================================================================
##
## Notes:
## [1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
print(results2.summary())
##                             WLS Regression Results
## ==============================================================================
## Dep. Variable:                      y   R-squared:                       0.113
## Model:                            WLS   Adj. R-squared:                  0.092
## Method:                 Least Squares   F-statistic:                     5.460
## Date:                Sun, 23 Jun 2024   Prob (F-statistic):             0.0242
## Time:                        14:05:13   Log-Likelihood:                -152.07
## No. Observations:                  45   AIC:                             308.1
## Df Residuals:                      43   BIC:                             311.8
## Df Model:                           1
## Covariance Type:            nonrobust
## ==============================================================================
##                  coef    std err          t      P>|t|      [0.025      0.975]
## ------------------------------------------------------------------------------
## const         50.2946      2.649     18.986      0.000      44.952      55.637
## x1             0.9799      0.419      2.337      0.024       0.134       1.826
## ==============================================================================
## Omnibus:                        1.638   Durbin-Watson:                   2.584
## Prob(Omnibus):                  0.441   Jarque-Bera (JB):                1.268
## Skew:                          -0.410   Prob(JB):                        0.531
## Kurtosis:                       2.944   Cond. No.                         15.8
## ==============================================================================
##
## Notes:
## [1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
model2 = sm.OLS(y,x)
results = model2.fit(cov_type='HC2')
print(results.summary())
##                             OLS Regression Results
## ==============================================================================
## Dep. Variable:                      y   R-squared:                       0.108
## Model:                            OLS   Adj. R-squared:                  0.088
## Method:                 Least Squares   F-statistic:                     6.578
## Date:                Sun, 23 Jun 2024   Prob (F-statistic):             0.0139
## Time:                        14:05:13   Log-Likelihood:                -153.10
## No. Observations:                  45   AIC:                             310.2
## Df Residuals:                      43   BIC:                             313.8
## Df Model:                           1
## Covariance Type:                  HC2
## ==============================================================================
##                  coef    std err          z      P>|z|      [0.025      0.975]
## ------------------------------------------------------------------------------
## const         50.2878      1.867     26.932      0.000      46.628      53.947
## x1             0.9811      0.383      2.565      0.010       0.231       1.731
## ==============================================================================
## Omnibus:                        2.000   Durbin-Watson:                   2.587
## Prob(Omnibus):                  0.368   Jarque-Bera (JB):                1.419
## Skew:                          -0.433   Prob(JB):                        0.492
## Kurtosis:                       3.081   Cond. No.                         16.9
## ==============================================================================
##
## Notes:
## [1] Standard Errors are heteroscedasticity robust (HC2)

5.4 Normality

Another assumption is that the residuals are normally distributed. We can test this assumption through use of visual aids or formal hypothesis tests. visual aids include a histogram of the residuals or Q-Q plot of residuals. A few tests of normality of residuals, include (but not limited to) Shapiro-Wilk, Anderson-Darling, Kolmogorov-Smirnov tests. In addition to the base R package, you should also install and library the nortest package.

Visualization

To visually inspect whether or not the residuals are normally distributed, we can either graph the historgram of residuals or create a Q-Q plot of the residuals. In the histogram, we are looking for a bell-shaped curve and in the Q-Q plot, we are looking for a straight line.

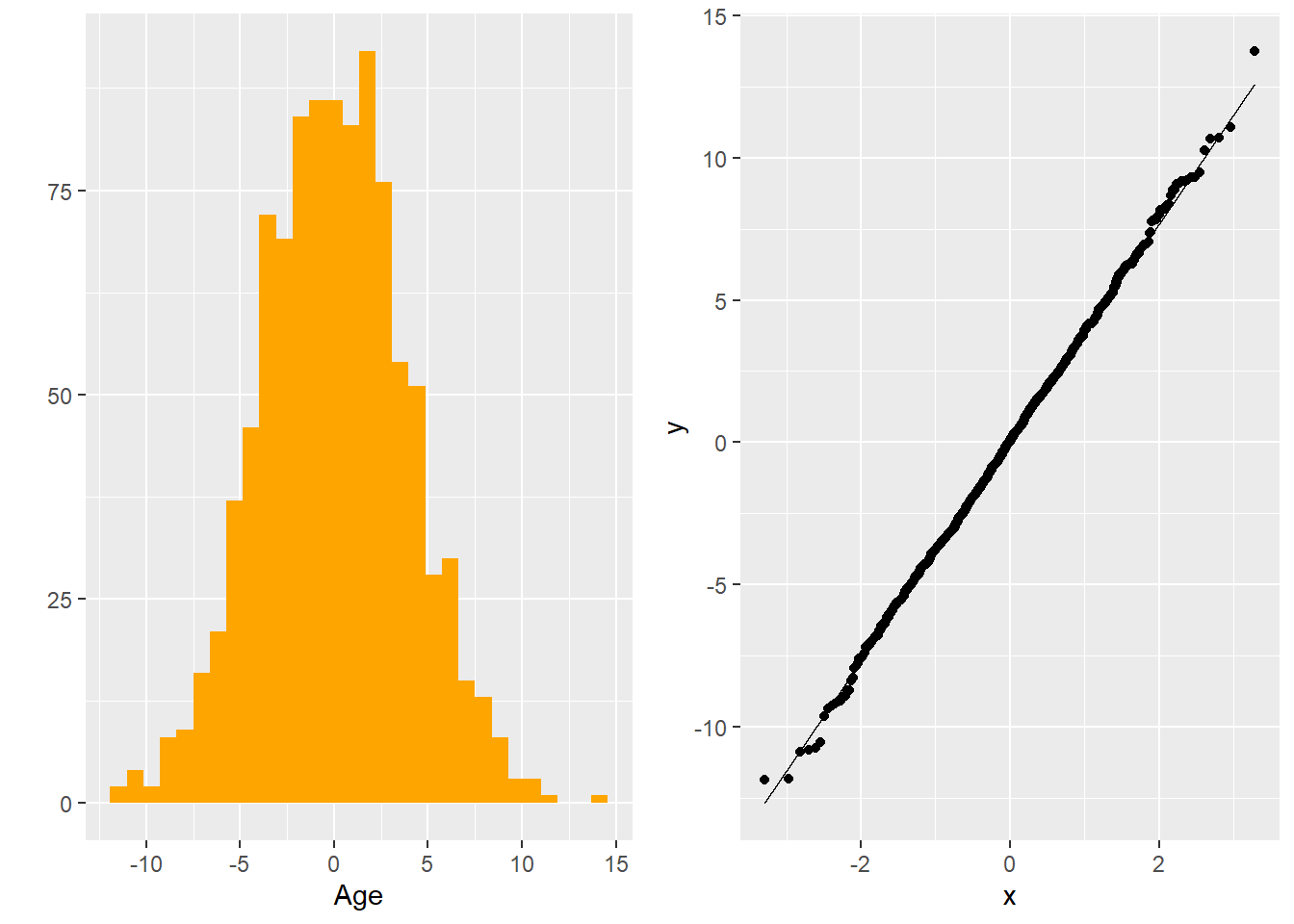

Histogram and Q-Q Plot of Residuals

Figure 5.12: Histogram and Q-Q Plot of Residuals

Formal Hypothesis tests

You can also run a formal hypothesis test. The hypotheses are
\(H_{0}:\) Residuals are normally distributed
\(H_{A}:\) Residuals are not normally distributed.

There are MANY different tests for normality. Only two will be covered here.

  1. Anderson-Darling is based on the empirical cumulative distribution function of the data and gives more weight to the tails.
  2. Shapiro-Wilk test uses the idea of correlation between the sample data and normal scores. The Shapiro-Wilk is better for smaller data sets.

With large samples, you will most likely end up rejecting these hypothesis tests (using corrected significance levels is recommended). Keep in mind that you can also get different result from different tests. It is up to you to make the decision on whether or not you are comfortable in the assumption for normality holding in different situations.

set.seed(55402)
x=rnorm(1000,0,4)
ad.test(x)
##
##  Anderson-Darling normality test
##
## data:  x
## A = 0.30275, p-value = 0.5742
shapiro.test(x)
##
##  Shapiro-Wilk normality test
##
## data:  x
## W = 0.99889, p-value = 0.814

Using a simulated data set (so the “TRUE” distribution is actually normal indicating that we should “Fail to reject” the null hypothesis). The p-values from both of these test illustrate that they would indicate the distribution is not significantly different from normal (which it should).

Box-cox Transformation

If the residuals are not normally distributed, one solution is to transform them to normality. However, the exact transformation might be difficult to identify. George Box and Sir David Cox developed an algorithm back in the 1960’s to assist in identifying “power” transformations to make a variable normally distributed (think…“what power should I raise this variable to?”). Their algorithm tries out different values of \(\lambda\) or powers of the response variable in the following way:

\[y = \begin{array} {rr} \frac{y^{\lambda}-1}{\lambda} & if \lambda \ne 0 \\ log(y) & if \lambda = 0 \end{array}\]

Example

Using the residuls from the originally salary data, we can take a look at the box-cox transformation.

lm.var=lm(salary~years)

boxcox(lm.var)

The output from the graph clearly incates that \(\lambda\) should be 0, which indicates a log transform.

In conclusion, to deal with data that is NOT normally distributed, we can either

  1. Use a robust regression (quantile regression or nonparametric)
  2. Transform either response or predictor variables or both to obtain normality in the residuals.

5.4.1 Python Code

sm.qqplot(experience['resid_mlr'])
plt.show()

sp.stats.shapiro(model_var.resid)
## ShapiroResult(statistic=0.9825804700820449, pvalue=0.21006919799469664)
bc = sp.stats.boxcox(experience['salary'], alpha = 0.05)
bc[1] # maxlog lambda value
## 0.06039568549324979
bc[2] # CI for lambda value
## (-0.291973062367277, 0.41815199140209897)

5.5 Correlated Errors

Another important assumption is that the observations are independent. There are a couple of ways in which we assess this assumtpion:

  1. Experimental design or collection of data
  2. Explore residual plots

Depending on how the data was collected or the experimental design, there could be potential correlation in the observations. For example, if the data collected information on multiple family members (include husband and wife and kids). Or if multiple observations were collected on the same subject. There are various models that exists that can account for this dependence (longitudinal analysis, hierarchical models, etc). However, this type of analysis will be covered later throughout the year. There is no diagnostic measures to indicate this correlation structure. Your best way of knowing it is there is to know the experimental design or collection of data.  We will focus our attention on a form of dependence that is evident from the residual plots, which is autocorrelation. This happens when ordered observations are dependent on prior observations. One of the most common instances of this correlation structure is through data that is collected over time, also referred to as time series. You will learn more about time series data in the Fall semester, but for now, let’s explore how to recognize if it is an issue in the analysis. To diagnose autocorrelation in data, you can

  1. Visually inspect the plot of residuals by time (see a pattern over time…usually cyclical)
  2. Conduct a Durbin-Watson test

In visually inspecting a plot of residuals across time, you would expect to see a type of cyclical pattern if autocorrelation exists as it does in Figure 5.13.

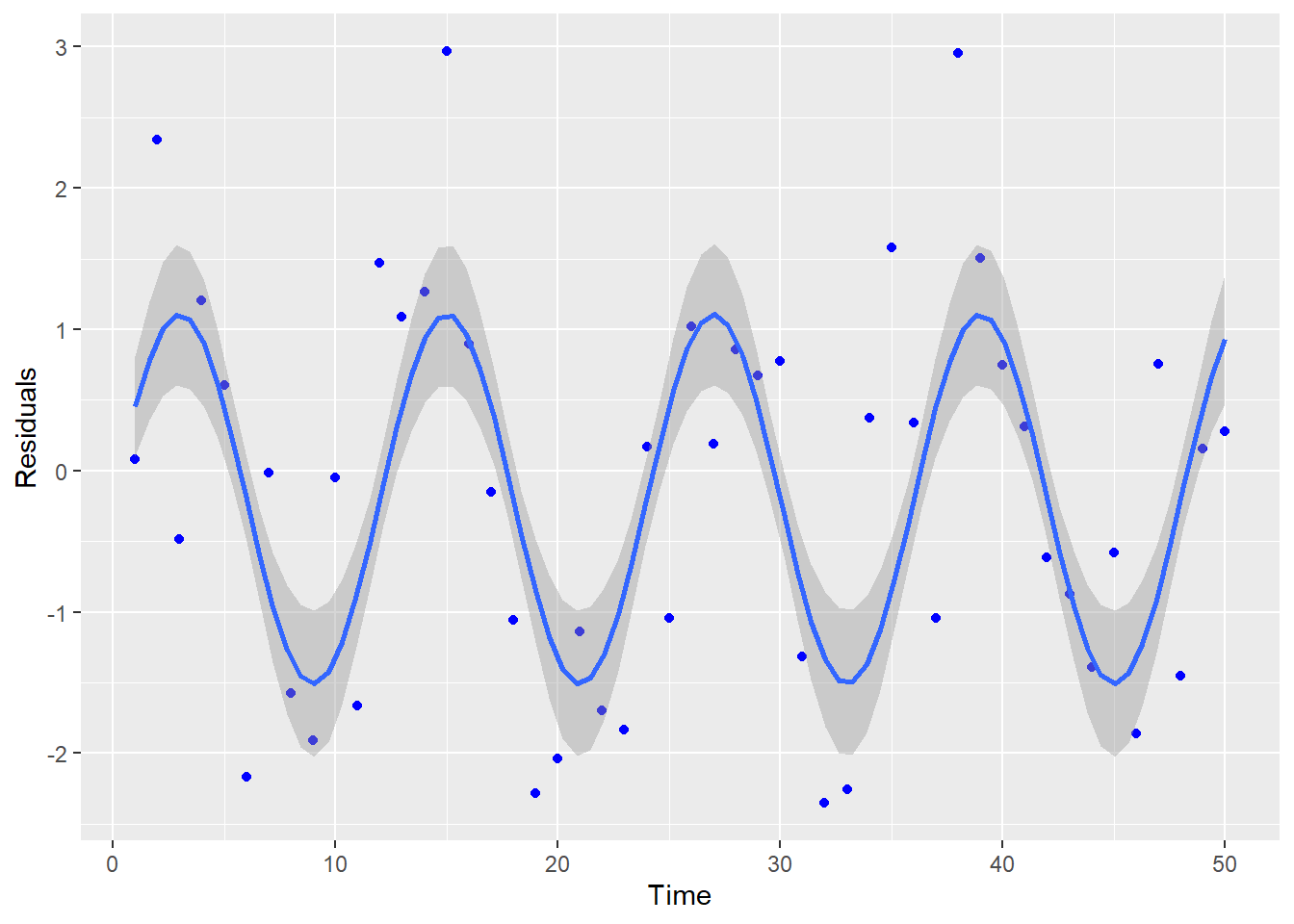

Residuals vs Time: Autocorrelation Present

Figure 5.13: Residuals vs Time: Autocorrelation Present

In using the Durbin-Watson test, the hypotheses are:
\(H_{0}:\) No residual correlation
\(H_{A}:\) Residual Correlation

The Durbin-Watson test statistic is calculated by

\[ d=\frac{\sum_{t=2}^T(e_{t}-e_{t-1})^2}{\sum_{t=1}^T e_{t}^2}\] where \(e\) represents the error terms, or residuals. The statistic d ranges from 0 to 4, with a value of 2 indicating no residual correlation. Values of d smaller than 2 may indicate a positive autocorrelation and a value of d larger than 2 may indicate a negative autocorrelation. However, the question becomes when is it “significantly different” than 2? Unless there is good reason to assume a negative autocorrelation, testing for positive autocorrelation would be the preferred test. The Durbin-Watson test is in the lmtest package of R. If you want to test for positive autocorrelation, you will need to specify the alternative of “greater” (even though the test statistic is testing for a value LESS than 2!!).

Example The following data set illustrates this test using the Google data set in the TSA package (returns of Google stock from 08/20/04 - 09/13/06).

data(google)
x=seq(1,length(google))
lm.model=lm(google~x)
dwtest(lm.model,alternative="greater")
##
##  Durbin-Watson test
##
## data:  lm.model
## DW = 1.842, p-value = 0.0321
## alternative hypothesis: true autocorrelation is greater than 0

In running this test, you either need to have the data sorted by the correct date (it assumes the observations are correctly ordered by time). If they are not, there is an order.by option in which you can use. For this example, the p-value is 0.0321, which if we use an \(\alpha\) of 0.05, we would reject the null hypothesis and conclude there appears to be significant positive autocorrelation.

If your data has significant autocorrelation, then the error terms will not be correct. We will discuss in the Fall semester how to model time series data appropriately.

5.5.1 Python Code

google = r.google

returns = pd.DataFrame({'returns': google, 'time': range(1, len(google)+1)})
model_dw = smf.ols("returns ~ time", data = returns).fit()
model_dw.summary()
OLS Regression Results
Dep. Variable: returns R-squared: 0.007
Model: OLS Adj. R-squared: 0.005
Method: Least Squares F-statistic: 3.733
Date: Sun, 23 Jun 2024 Prob (F-statistic): 0.0539
Time: 14:05:15 Log-Likelihood: 1209.3
No. Observations: 521 AIC: -2415.
Df Residuals: 519 BIC: -2406.
Df Model: 1
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 0.0062 0.002 2.960 0.003 0.002 0.010
time -1.34e-05 6.93e-06 -1.932 0.054 -2.7e-05 2.24e-07
Omnibus: 76.878 Durbin-Watson: 1.842
Prob(Omnibus): 0.000 Jarque-Bera (JB): 398.126
Skew: 0.510 Prob(JB): 3.53e-87
Kurtosis: 7.159 Cond. No. 603.


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

Durbin-Watson test statistic is reported by default in summary of linear regression, but there is no way of getting a p-value for this metric in Python.

5.6 Influential Observations and Outliers

Influential points and outliers play a large role in the estimation of the model and its prediction. Influential points are usually those points on the edges of the x-values and can greatly impact the slopes in the regression equation. Outliers tend to be those values that do not follow the trend of the data and are generally found by large deviations in the y direction. For multiple linear regression, outliers are found by using residuals. These can be standardize residuals or studentized residuals. Influential points can be discovered by Cook’s D, dffits, dfbetas or Hat values. These points are important to identify and recognize their influence on the regression, however, it does NOT mean that these points should be removed. Removal of data should be taken very seriously. We would obviously want to omit any observations made in error, due to typos or reporting inaccuracies, but we do not remove data points just because they are outside the scope of our expectations. We have many tools at our disposal for modeling with such observations, and we should always develop a deep understanding of the application-specific risks and rewards associated with data removal.

In the this section we will cover the following statistics to help us detect outliers and influential observations respectively.

Outliers

  • rstandard
  • rstudent

Influential observations

  • dffits
  • dfbetas
  • cooks.distance
  • hatvalues

Outliers

In using residuals to detect outliers, we first need to “standardize” them, or divide by their standard errors. In this sense, we can think of these “standardized” residuals as an approximate z-score. Therefore, we look for residuals greater in magnitude than 3 as potential outliers. R calculates two different types of standardized residuals: 1. standardized residuals (rstandard) and 2. studentized residuals (rstudent). Standardized residuals are definied as \[ r_{i}=\frac{e_{i}}{\hat\sigma\sqrt{1-H_{ii}}},\] where \(\hat\sigma\) is the square root of the MSE and \(H_{ii}\) is from the diagonal of the hat matrix (hat matrix will be discussed in influential observations). Studentized residuals are definied as \[ t_{i}=\frac{e_{i}}{\hat\sigma_{(i)}\sqrt{1-H_{ii}}},\] where \(\hat\sigma_{(i)}\) is the square root of the MSE calculated when observation i is deleted and \(H_{ii}\) is from the diagonal of the hat matrix. The studentized residuals follow a t-distribution with \(n-k-2\), where \(k\) is the number of explanatory variables(notice that this has one less degree of freedom than the usual error in regression which is due to the one deleted observation).

Influential observations

Influential observations are observations that can dramatically change the model’s estimates. It is important to identify and understand these where these observations are. There are a number of different measures to aid in identifying influential observations, which will be discussed below.

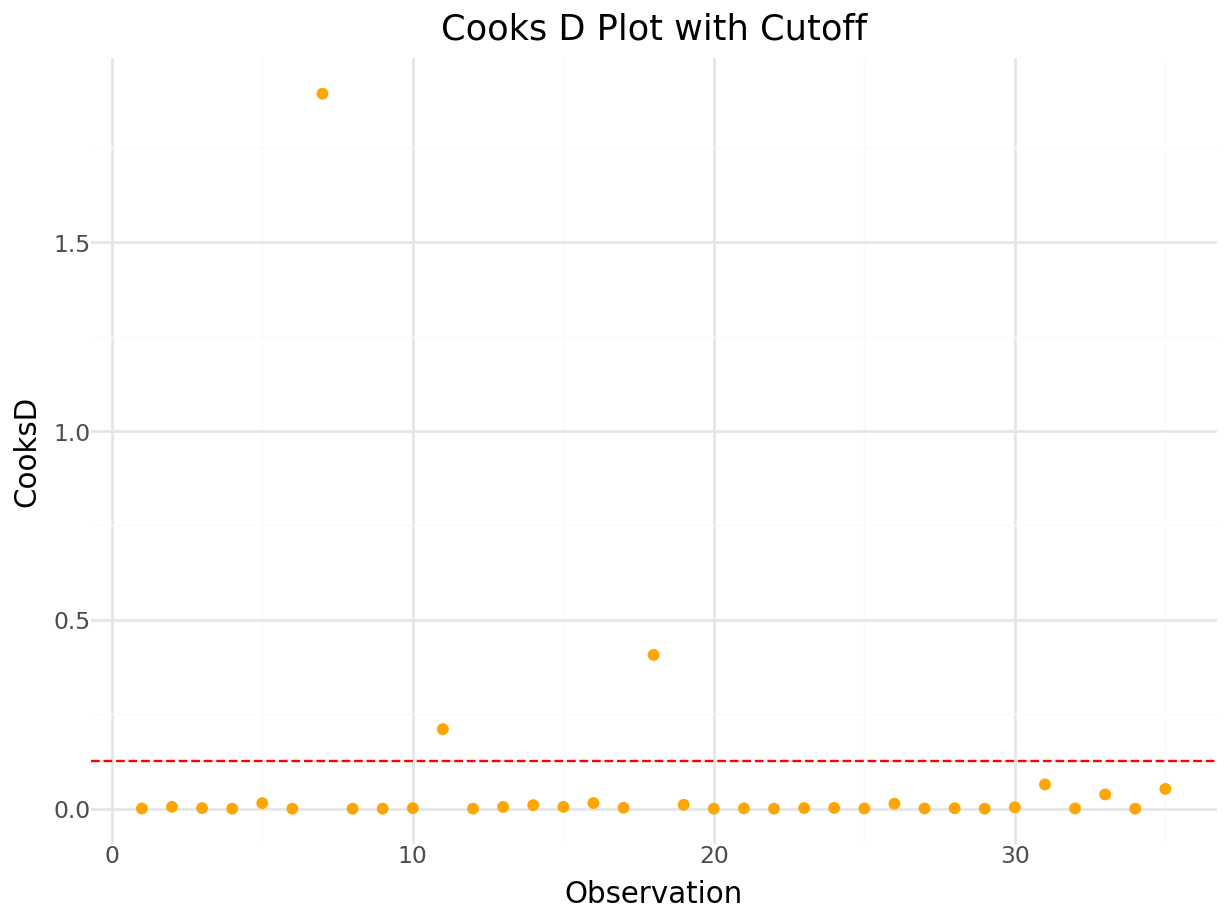

Cook’s distance, also referred to as Cook’s D, measures the difference in the regression estimates when the \(i^{th}\) observation is left out. A rough rule of thumb is to use the quantile of the \(F\) distribution with numerator degrees of freedom \(p\) and denominator degrees of freedom \(n-p\) where \(n\) is the number of observations and \(p\) is the number of parameters in the regression equation.

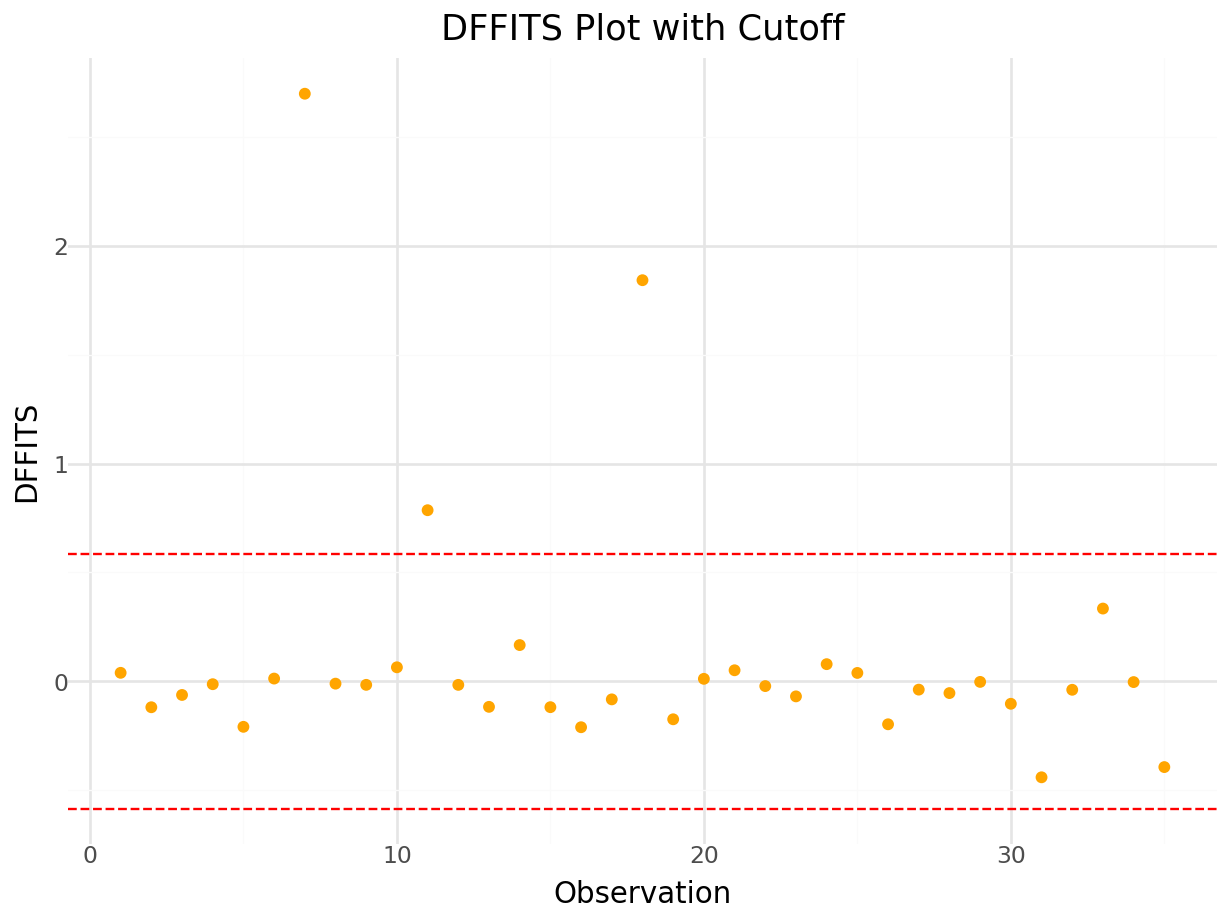

Dffits calculates the difference of fitted values for each point in the regression versus the fit of the regression line for that point if it was removed. Large values of dffits indicate that the point is influential in the calculation of the estimated regression line. As a general rule of thumb, a cutoff of \(2\sqrt{p/n}\) is used to identify potential influential points.
Dfbetas follows the same idea as dffits. The difference in the estimated betas is calculated for each observation (observation included in the estimated beta and observation NOT included in estimating the beta). This is done for each individual observation and each estimated beta. For small data sets, a value greater than 1 is suspect of an influential observation. For large data sets, the cutoff is \(\frac{2}{\sqrt{n}}\).
The hat values \(H_{ii}\) are the diagonal values of \[\boldsymbol{X(X^{T}X)^{-1.}X^{T}}.\] Hat values can identify high leverage points in a regression. A general rule of thumb are hat values greater than \(\frac{2p}{n}\).

Example

We will use the Scottish hill races as an example to illustrate how to calculate and visualize these values. The Scottish hill races include the following variables:

  • Time: Record time to complete course
  • Distance: Distance in the course
  • Climb: Vertical climb in the course
url = 'http://www.statsci.org/data/general/hills.txt'
races_table = read.table(url, header=TRUE, sep='\t')
n.index=seq(1,nrow(races_table))
races.table=cbind(races_table,n.index)
lm.model=lm(Time~Distance+Climb,data=races_table)


##Plots of outliers
a = ggplot(lm.model,aes(x=n.index,y=rstandard(lm.model)))+geom_point(color="orange")+geom_line(y=-3)+geom_line(y=3)+labs(title = "Internal Studentized Residuals",x="Observation",y="Residuals")

b = ggplot(lm.model,aes(x=n.index,y=rstudent(lm.model)))+geom_point(color="orange")+geom_line(y=-3)+geom_line(y=3)+labs(title = "External Studentized Residuals",x="Observation",y="Residuals")

##Influential points
c = ggplot(lm.model,aes(x=n.index,y=rstandard(lm.model)))+geom_point(color="orange")+geom_line(y=-3)+geom_line(y=3)+labs(title = "Internal Studentized Residuals",x="Observation",y="Residuals")

##Cook's D
D.cut=4/(nrow(races_table)-3)

d =ggplot(lm.model,aes(x=n.index,y=cooks.distance(lm.model)))+geom_point(color="orange")+geom_line(y=D.cut)+labs(title = "Cook's D",x="Observation",y="Cook's Distance")

##Dffit
df.cut=2*(sqrt(3/nrow(races_table)))

e =ggplot(lm.model,aes(x=n.index,y=dffits(lm.model)))+geom_point(color="orange")+geom_line(y=df.cut)+geom_line(y=-df.cut)+labs(title = "DFFITS",x="Observation",y="DFFITS")

db.cut=2/sqrt(nrow(races_table))


f =ggplot(lm.model,aes(x=n.index,y=dfbetas(lm.model)[,'Climb']))+geom_point(color="orange")+geom_line(y=db.cut)+geom_line(y=-db.cut)+labs(title = "DFBETA for Climb",x="Observation",y="DFBETAS")

g =ggplot(lm.model,aes(x=n.index,y=dfbetas(lm.model)[,'Distance']))+geom_point(color="orange")+geom_line(y=db.cut)+geom_line(y=-db.cut)+labs(title = "DFBETA for Distance",x="Observation",y="DFBETAS")

##Hat
hat.cut=2*(3)/nrow(races_table)

h = ggplot(lm.model,aes(x=n.index,y=hatvalues(lm.model)))+geom_point(color="orange")+geom_line(y=hat.cut)+labs(title = "Hat values",x="Observation",y="Hat Values")

grid.arrange(a,b,c,d,e,f,g,ncol=2)
Plots for Exploring Outliers and Influential Points

Figure 5.14: Plots for Exploring Outliers and Influential Points

Figure 5.14 shows a number of useful graphics that help us explore outliers and influential points.

A good graph to explore is looking at the studentized residuals versus the hat values. An observation that is high leverage AND an outlier is one that needs to be explored.

ggplot(lm.model,aes(x=hatvalues(lm.model),y=rstudent(lm.model))) +  geom_point(color="orange")+ labs(x="Hat values",y="Residuals")
Influential and Outlier Observations

Figure 5.15: Influential and Outlier Observations

5.6.1 Python Code

races_table = r.races_table

model_io = smf.ols("Time ~ Distance + Climb", data = races_table).fit()
model_io.summary()
OLS Regression Results
Dep. Variable: Time R-squared: 0.919
Model: OLS Adj. R-squared: 0.914
Method: Least Squares F-statistic: 181.7
Date: Sun, 23 Jun 2024 Prob (F-statistic): 3.40e-18
Time: 14:05:18 Log-Likelihood: -142.11
No. Observations: 35 AIC: 290.2
Df Residuals: 32 BIC: 294.9
Df Model: 2
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept -8.9920 4.303 -2.090 0.045 -17.756 -0.228
Distance 6.2180 0.601 10.343 0.000 4.993 7.442
Climb 0.0110 0.002 5.387 0.000 0.007 0.015
Omnibus: 47.910 Durbin-Watson: 2.249
Prob(Omnibus): 0.000 Jarque-Bera (JB): 233.976
Skew: 3.026 Prob(JB): 1.56e-51
Kurtosis: 14.127 Cond. No. 4.20e+03


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 4.2e+03. This might indicate that there are
strong multicollinearity or other numerical problems.

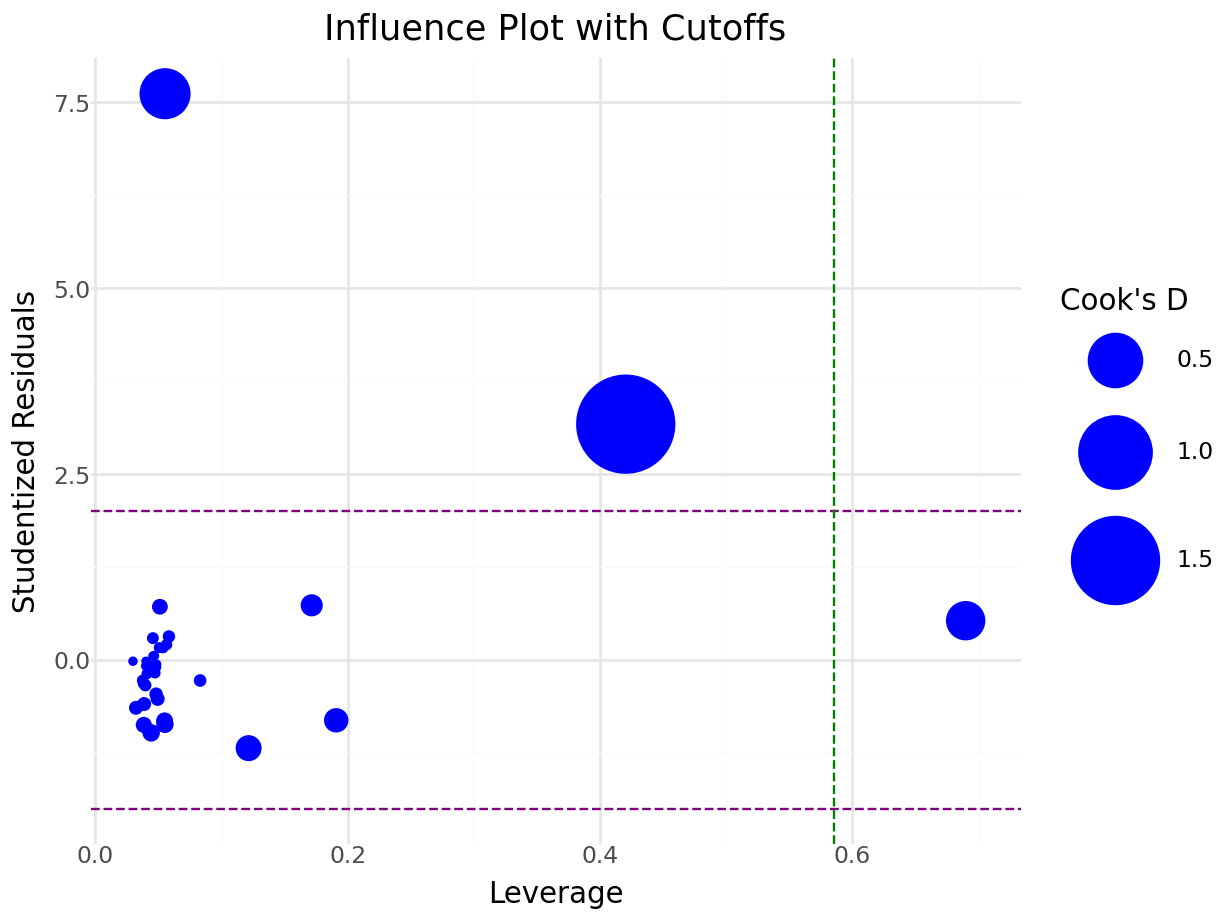

sm.graphics.influence_plot(model_io)
plt.show()

sm.graphics.plot_leverage_resid2(model_io)
plt.show()

from statsmodels.stats.outliers_influence import OLSInfluence

outliers_inf = OLSInfluence(model_io)
outliers_inf.cooks_distance
## (0     0.000513
## 1     0.004875
## 2     0.001365
## 3     0.000064
## 4     0.014741
## 5     0.000051
## 6     1.893349
## 7     0.000043
## 8     0.000095
## 9     0.001405
## 10    0.210521
## 11    0.000096
## 12    0.004704
## 13    0.009339
## 14    0.004834
## 15    0.014907
## 16    0.002386
## 17    0.407156
## 18    0.010265
## 19    0.000042
## 20    0.000870
## 21    0.000172
## 22    0.001661
## 23    0.002108
## 24    0.000499
## 25    0.013179
## 26    0.000511
## 27    0.001018
## 28    0.000003
## 29    0.003669
## 30    0.064123
## 31    0.000531
## 32    0.037695
## 33    0.000005
## 34    0.052422
## dtype: float64, array([0.99998359, 0.99952092, 0.99992875, 0.99999927, 0.99750547,
##        0.99999948, 0.15057304, 0.9999996 , 0.99999869, 0.99992561,
##        0.88836519, 0.99999867, 0.99954591, 0.99873536, 0.99952695,
##        0.9974636 , 0.99983562, 0.74889062, 0.99854403, 0.99999962,
##        0.99996374, 0.99999682, 0.99990442, 0.99986344, 0.99998426,
##        0.99788819, 0.99998366, 0.99995412, 0.99999999, 0.99968682,
##        0.97843259, 0.9999827 , 0.99002625, 0.99999998, 0.9838756 ]))
outliers_inf.resid_studentized
## 0     0.164547
## 1    -0.530157
## 2    -0.320258
## 3    -0.061540
## 4    -0.869429
## 5     0.055980
## 6     2.798195
## 7    -0.054764
## 8    -0.082497
## 9     0.296673
## 10    0.532907
## 11   -0.079673
## 12   -0.650019
## 13    0.720096
## 14   -0.599632
## 15   -0.981525
## 16   -0.280934
## 17    4.565581
## 18   -0.876961
## 19    0.051033
## 20    0.208624
## 21   -0.100766
## 22   -0.346860
## 23    0.319234
## 24    0.167320
## 25   -0.824225
## 26   -0.189338
## 27   -0.279657
## 28   -0.017885
## 29   -0.465994
## 30   -1.178913
## 31   -0.178834
## 32    0.738902
## 33   -0.019440
## 34   -0.816190
## dtype: float64
outliers_inf.dfbetas
## array([[ 3.78114620e-02, -1.66142583e-02, -4.74356249e-03],
##        [-5.95797144e-02,  6.72153961e-02, -7.33958853e-02],
##        [-4.85768597e-02, -6.70654508e-03,  2.80327646e-02],
##        [-7.66497083e-03, -5.67519011e-03,  8.76365984e-03],
##        [-5.04605283e-02,  8.47092735e-02, -1.45004611e-01],
##        [ 3.48445633e-03, -4.31606470e-03,  7.57593895e-03],
##        [-8.90654684e-01, -7.12773548e-01,  2.36461849e+00],
##        [-8.44278394e-03, -1.64840934e-03,  5.56190747e-03],
##        [-1.43689115e-02,  9.13139595e-04,  6.16065598e-03],
##        [ 4.70341147e-02,  1.30569237e-02, -3.65191836e-02],
##        [-3.01182091e-01,  7.68715994e-01, -4.79849318e-01],
##        [-1.14916485e-02,  9.65572102e-03, -7.48775503e-03],
##        [-3.17290631e-02, -2.99106792e-02, -7.06675373e-04],
##        [ 1.18031242e-01,  4.20335396e-02, -1.04884058e-01],
##        [-1.00376388e-01,  5.77007540e-02, -2.23168727e-02],
##        [-1.85202935e-02,  6.78882683e-03, -9.98617172e-02],
##        [ 1.19637294e-02, -6.65049703e-02,  3.44553620e-02],
##        [ 1.75827483e+00, -4.06545270e-01, -6.55934189e-01],
##        [-1.58890179e-01,  4.43113962e-02,  2.94135680e-02],
##        [ 8.65836948e-03,  1.42439015e-03, -5.94640219e-03],
##        [ 4.77654621e-02, -1.00187391e-02, -1.91985978e-02],
##        [-1.88889123e-02,  1.38562806e-02, -6.46531589e-03],
##        [-4.13064821e-02,  3.40969664e-02, -3.30224386e-02],
##        [ 7.48332952e-02, -4.63850912e-02,  6.42781055e-03],
##        [ 3.69114627e-02, -1.26332955e-02, -8.25681544e-03],
##        [-1.37724315e-01,  1.36123898e-01, -1.01306082e-01],
##        [-2.92047355e-02, -5.70207164e-03,  1.92393928e-02],
##        [-4.76410803e-02,  6.93608846e-03,  1.49895347e-02],
##        [-2.13796696e-03,  6.46622392e-04, -3.28107642e-04],
##        [-8.53158805e-02, -7.70515002e-03,  5.48379624e-02],
##        [ 2.09938203e-02,  1.70124162e-01, -3.73633899e-01],
##        [-2.85790991e-02, -8.69351158e-03,  2.32754469e-02],
##        [-1.58227428e-01,  9.70139844e-02,  1.55701652e-01],
##        [-3.55632705e-03,  7.04242903e-04,  1.05420857e-03],
##        [ 2.08721643e-01, -1.99048204e-01, -1.00907222e-01]])

5.7 Multicollinearity

Multicollinearity occurs when one or more predictor variables are linearly related to each other and will create issues with the regression. The parameter estimates will not be stable and the standard errors will be inflated (making it more difficult to find significant explantory variables). The two most common ways to identify multicollinearity is by looking at the correlation among the predictor variables and calculating the variance inflation factor.

The variance inflation factor (also referred to as VIF) will take each explanatory variable and model it as a linear regression of the remaining explanatory variables. For example, let’s say we have the following regression equation:
\[\widehat{Y}_{i}=b_{0} + b_{1}x_{1}+ b_{2}x_{2}+ b_{3}x_{3}.\] There are only 3 explanatory variables in this regression. A VIF will be calculated on each \(x_{i}\) in the following manner:

  1. A regression is fit on each \(x_{i}\) with the remaining \(x_{i}\)’s as the explanatory variables. For example, to calculate the VIF for \(x_{1}\), we fit the following model:

\[\widehat{x}_{1}=b_{0} + b_{1}x_{2}+ b_{2}x_{3},\] and obtain the \(R^2\) value from this model (call it \(R_{1}^2\)).
2. The VIF for \(x_{1}\) is calculated by \[VIF=\frac{1}{1-R_{1}^2}.\] Repeat this process for each of the other explanatory variables. If a VIF value is larger than 10, then we say that multicollinearity is an issue.

Example

We will use the mtcars data set dealing with fuel consumption and automobile design. The data set consists of the following variables:

A data frame with 32 observations on 11 (numeric) variables.

  • mpg: Miles/(US) gallon
  • cyl: Number of cylinders
  • disp: Displacement (cu.in.)
  • hp: Gross horsepower
  • drat: Rear axle ratio
  • wt: Weight (1000 lbs)
  • qsec: 1/4 mile time
  • vs: Engine (0 = V-shaped, 1 = straight)
  • am: Transmission (0 = automatic, 1 = manual)
  • gear: Number of forward gears
cor(mtcars)
##             mpg        cyl       disp         hp        drat         wt
## mpg   1.0000000 -0.8521620 -0.8475514 -0.7761684  0.68117191 -0.8676594
## cyl  -0.8521620  1.0000000  0.9020329  0.8324475 -0.69993811  0.7824958
## disp -0.8475514  0.9020329  1.0000000  0.7909486 -0.71021393  0.8879799
## hp   -0.7761684  0.8324475  0.7909486  1.0000000 -0.44875912  0.6587479
## drat  0.6811719 -0.6999381 -0.7102139 -0.4487591  1.00000000 -0.7124406
## wt   -0.8676594  0.7824958  0.8879799  0.6587479 -0.71244065  1.0000000
## qsec  0.4186840 -0.5912421 -0.4336979 -0.7082234  0.09120476 -0.1747159
## vs    0.6640389 -0.8108118 -0.7104159 -0.7230967  0.44027846 -0.5549157
## am    0.5998324 -0.5226070 -0.5912270 -0.2432043  0.71271113 -0.6924953
## gear  0.4802848 -0.4926866 -0.5555692 -0.1257043  0.69961013 -0.5832870
## carb -0.5509251  0.5269883  0.3949769  0.7498125 -0.09078980  0.4276059
##             qsec         vs          am       gear        carb
## mpg   0.41868403  0.6640389  0.59983243  0.4802848 -0.55092507
## cyl  -0.59124207 -0.8108118 -0.52260705 -0.4926866  0.52698829
## disp -0.43369788 -0.7104159 -0.59122704 -0.5555692  0.39497686
## hp   -0.70822339 -0.7230967 -0.24320426 -0.1257043  0.74981247
## drat  0.09120476  0.4402785  0.71271113  0.6996101 -0.09078980
## wt   -0.17471588 -0.5549157 -0.69249526 -0.5832870  0.42760594
## qsec  1.00000000  0.7445354 -0.22986086 -0.2126822 -0.65624923
## vs    0.74453544  1.0000000  0.16834512  0.2060233 -0.56960714
## am   -0.22986086  0.1683451  1.00000000  0.7940588  0.05753435
## gear -0.21268223  0.2060233  0.79405876  1.0000000  0.27407284
## carb -0.65624923 -0.5696071  0.05753435  0.2740728  1.00000000
lm.model=lm(mpg~.,data=mtcars)
vif(lm.model)
##       cyl      disp        hp      drat        wt      qsec        vs        am
## 15.373833 21.620241  9.832037  3.374620 15.164887  7.527958  4.965873  4.648487
##      gear      carb
##  5.357452  7.908747

From the correlation output and VIF output, it is clear that multicollinearity is an issue. To deal with multicollinearity, we can do either of the following:

  1. Remove one or more variables that are co-linearly related to another variable(s).
  2. Create new transformed variables (take linear combinations of variables; create ratio of variables, etc).

5.7.1 Python Code

mtcars = r.mtcars

np.corrcoef(mtcars, rowvar = False)
## array([[ 1.        , -0.85216196, -0.84755138, -0.77616837,  0.68117191,
##         -0.86765938,  0.41868403,  0.66403892,  0.59983243,  0.48028476,
##         -0.55092507],
##        [-0.85216196,  1.        ,  0.90203287,  0.83244745, -0.69993811,
##          0.78249579, -0.59124207, -0.8108118 , -0.52260705, -0.4926866 ,
##          0.52698829],
##        [-0.84755138,  0.90203287,  1.        ,  0.79094859, -0.71021393,
##          0.88797992, -0.43369788, -0.71041589, -0.59122704, -0.5555692 ,
##          0.39497686],
##        [-0.77616837,  0.83244745,  0.79094859,  1.        , -0.44875912,
##          0.65874789, -0.70822339, -0.72309674, -0.24320426, -0.12570426,
##          0.74981247],
##        [ 0.68117191, -0.69993811, -0.71021393, -0.44875912,  1.        ,
##         -0.71244065,  0.09120476,  0.44027846,  0.71271113,  0.69961013,
##         -0.0907898 ],
##        [-0.86765938,  0.78249579,  0.88797992,  0.65874789, -0.71244065,
##          1.        , -0.17471588, -0.55491568, -0.69249526, -0.583287  ,
##          0.42760594],
##        [ 0.41868403, -0.59124207, -0.43369788, -0.70822339,  0.09120476,
##         -0.17471588,  1.        ,  0.74453544, -0.22986086, -0.21268223,
##         -0.65624923],
##        [ 0.66403892, -0.8108118 , -0.71041589, -0.72309674,  0.44027846,
##         -0.55491568,  0.74453544,  1.        ,  0.16834512,  0.20602335,
##         -0.56960714],
##        [ 0.59983243, -0.52260705, -0.59122704, -0.24320426,  0.71271113,
##         -0.69249526, -0.22986086,  0.16834512,  1.        ,  0.79405876,
##          0.05753435],
##        [ 0.48028476, -0.4926866 , -0.5555692 , -0.12570426,  0.69961013,
##         -0.583287  , -0.21268223,  0.20602335,  0.79405876,  1.        ,
##          0.27407284],
##        [-0.55092507,  0.52698829,  0.39497686,  0.74981247, -0.0907898 ,
##          0.42760594, -0.65624923, -0.56960714,  0.05753435,  0.27407284,
##          1.        ]])
X = mtcars.loc[:, mtcars.columns!='mpg']
X = X.assign(const=1)

vif = pd.DataFrame()
vif['VIF'] = [ss.outliers_influence.variance_inflation_factor(X.values, i) for i in range(X.shape[1])]
vif['variable'] = X.columns

print(vif)
##             VIF variable
## 0     15.373833      cyl
## 1     21.620241     disp
## 2      9.832037       hp
## 3      3.374620     drat
## 4     15.164887       wt
## 5      7.527958     qsec
## 6      4.965873       vs
## 7      4.648487       am
## 8      5.357452     gear
## 9      7.908747     carb
## 10  1596.273030    const
